The Hawker Siddeley APD.1019 was a series of mid 1960's studies into designs for a research aircraft capable of Mach 5. Several different versions were produced, ranging from 21-58 tonnes. Configurations ranged from relatively conventional canard deltas to advanced lifting body flying wedges. Propulsion options included hydrogen fuelled scramjets and turborockets (an engine capable of operating as a turbojet or a rocket).

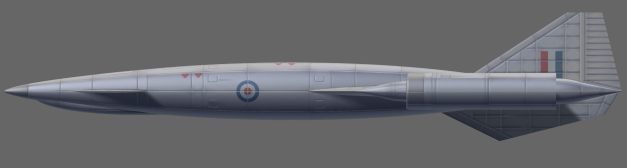

Illustrations of some of the designs are shown below. Click the images to open a full-resolution image.
Buttler, T, British
Hypersonics, Ramjets & Missiles, Ian
Allan Publishing Ltd,

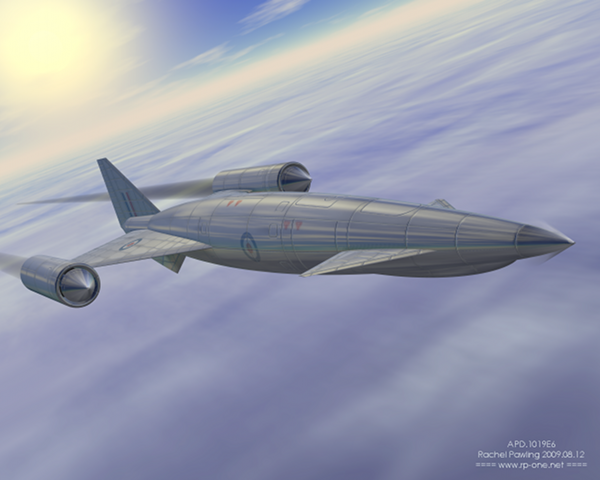

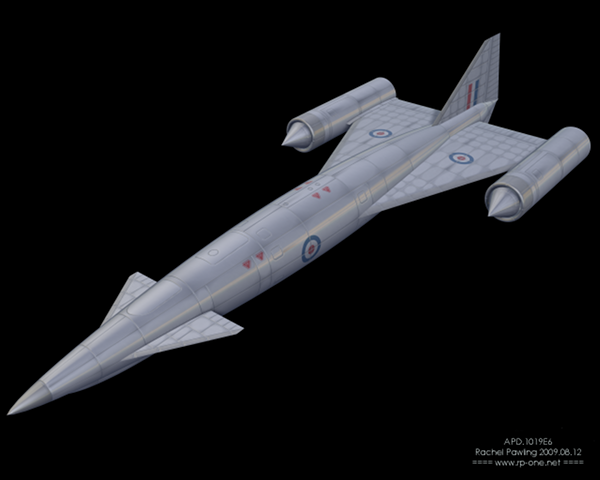

The HSA APD.1019E6, powered
Rolls-Royce FPS.146 Turborockets with a Rolls-Royce
RB.189 lift engine
for use during landing and take-off.
addition to the
lift engines, the turborocket nacelles could be
rotated to provide
additional lift. The cockpit hatch can be seen aft
of the canard.
